Gallant Lady
2007

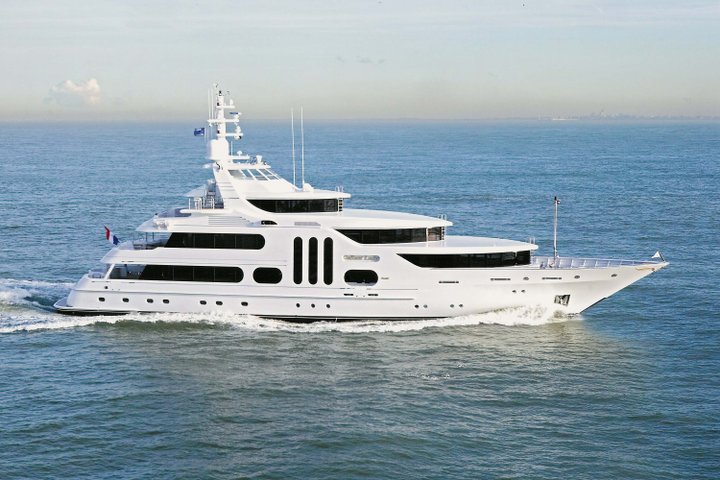

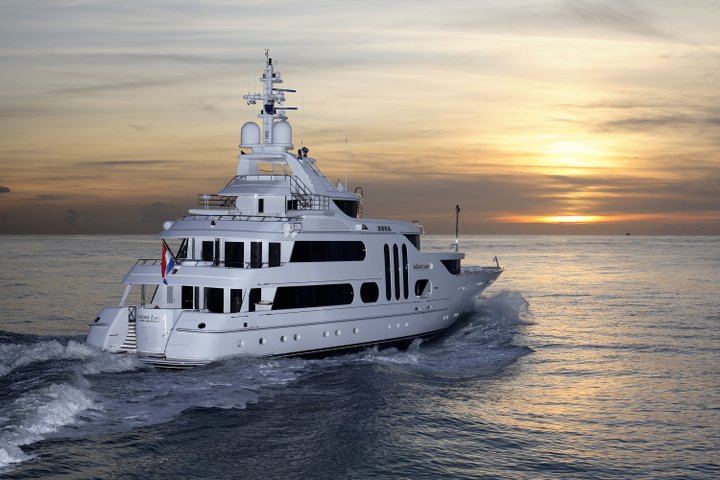

This is Gallant Lady
The eighth and final Gallant Lady was designed to be shallow enough to cruise the inland waterways and park at a designated dock behind the owners’ Florida home. She was built in aluminium with lightweight and high-tech composites for the upper decks. A key styling feature was the pointed oval design of the forward section of the three superstructure decks, giving the yacht a ‘sleeker’ look. The yacht features a dramatic central stairway in the centre of the vessel, making the most of the three vertical windows, and a glass elevator outboard, the first and only elevator on a Gallant Lady.
Specifications
| Hull | 672 |
| Year | 2007 |
| Length | 51.21m / 168′0″ |
| Speed | 16 knots |
| Beam | 10.07m / 33′0″ |
| Draught | 2.15m / 7′0″ |
| Depth | 4.15m / 13′7″ |
| Range | 4200 |
| Launch name | Gallant Lady |
| Previous names | ACTA |
| Current name | Acta |
Design
| Naval architect | Feadship De Voogt Naval Architects |
| Exterior design | Studio De Voogt |
| Interior design | John Munford Design |
Propulsion
| Main engines | 2 x Caterpillar 3508B A-rated TI-DA 746kW at 1600rpm |
| Generators | 3 x Caterpillar C9 1800rpm |
Capacity
| Fuel capacity | 73,100 litres / 19,310 USG |
| Fuel capacity | 73 m³ |
| Water capacity | 15,970 litres / 4,218 USG |
| Water capacity | 16 m³ |
Accommodation
| Guests | 10 |
| Staterooms | 5 |
